| Type |
PC10
|

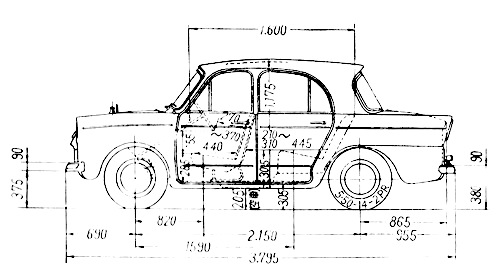

| Dimensions (mm) |
Length |
3,975
|
| Width |
1,475
|
| Hieght |
1,415
|
| Wheelbase |
2,150
|
| Treads (Front/Rear) |
1,210/1,200
|
| Ground clearance |
205
|
| Passenger compartment size (mm) |
Length |
1,600
|
| Width |
1,240
|
| Hieght |
1,175
|
| Weight (kg) |
Weight, Dry |
720 (Delux - 750)
|
| Seat capacity |
5
|
| Total weight |
995 (Delux - 1,025)
|
| Performance |
Max. Speed (km/h) |
110
|
| Climbing capabity sinθ |
0.33
|
| Min. turning radius (m) |
4.3
|
| Fuel consumption km/litter |
20(@50km/h)
|
| Stopping distance (m) |
14 (@50km/h)
|
| Engine |
Model |
GR100, OHV, Water cooled, Straight 4 cylinder
|
| Bore X Stroke (mm) |
60 X 79
|
| Piston Displacement (cc) |
893
|
| Compression ratio |
8.0
|
| Maximum output (PS/rpm) |
35/5,000
|
| Maximum torque (Kgm/rpm) |
6.5/3,200
|
| Firing order |
1-3-4-2
|
| Fuel tank capacity (L) |
32
|
| Electric equip. |
Battery |
12V-40AH
|
| Generator |
AC generator, Self rectification, 12-300W
|
| Starter |
12V-1PS
|
| Transmission system |
Clutch |
Dry single plate
(Optional: Electromagnetism Automatic)
|
| Transmission |
3/4-speed forward and 1 reverse, Synchromesh on forward
|
| Gear Ratio/1st |
3.70
|
| Gear Ratio/2nd |
1.81
|
| Gear Ratio/3rd |
1.07
|
| Gear Ratio/Reverse |
3.70
|
| Reduction gear |
Spiral Bevel
|
| Redcution Ratio |
4.62
|
| Steering system |
Rack & Pinion
|
| Breaks |
Foot |
Hydraulically operated, internal expanding type on all 4 wheels
|
| Manual |
Mechanically operated, internal expanding type on 2 rear wheels
|
| Suspension |
Type |
4 wheel independent suspension
|
| Front |
Wishbone
|
| Rear |
Swing axle
|
| Shock Absorber (Front/Rear) |
Hydraulic reciprocating cartridge
|
| Stabilizer |
Tosion Bar
|
| Frame |
Monocoque body
|
| Tire |
Front |
5.50-14-2PR
|
| Rear |
5.50-14-2PR
|
|
