| Type |
FH100
|
| Dimensions (mm) |
Length |
4,275
|
| Width |
1,640
|
| Height |
1,595
|
| Wheelbase |
2,520
|
| Treads (Front/Rear) |
1,325/1,300
|
| Ground clearance |
195
|
Bed (mm)
inside |
Length |
1,850
|
| Width |
1,490
|
| Height |
405
|
| Weight (kg) |
Weight, Dry |
1,080
|
| Seating capacity |
3
|
| Max. load capacity |
1,000
|
| Total weight |
2,245
|
| Performance |
Max. Speed (km/h) |
110
|
| Climbing capabity sinθ |
0.354
|
| Min. turning radius (m) |
5.2
|
| Fuel consumption km/litter |
14.5
|
| Stopping distance (m) @50km/h |
14
|
| Transmission system |
Clutch |
Dry single plate
|
| Transmission |
4-speed and Syncromesh
(excpet first gear)
|
| Gear Ratio/1st |
5.286
|
| Gear Ratio/2nd |
2.960
|
| Gear Ratio/3rd |
1.700
|
| Gear Ratio/4th |
1.000
|
| Gear Ratio/Reverse |
5.286
|
| Reduction gear |
Hypoid
|
| Redcution Ratio |
5.857
|
| Suspension |
Front |
Independent suspension spring
|
| Rear |
Semi- elliptical leaf spring
|
| Shock Absorber: Front |
Hydraulic reciprocating cartridge
|
| Shock Absorber: Rear |
Hydraulic reciprocating cartridge
|
| Drive system |
Front axle |
Wishbone type
|
| Rear axle |
Semi- floating type
|
| Breaks |
Foot |
4-wheels hydraulic, duo serve type
|
| Manual |
Mechanically operated, internal expanding type on 2 rear wheels
|
| Tires |
Front |
6.00-14-6PLT
|
| Rear |
6.00-14-8PLT
|
| Steering system |
Ball and nut type
|
| Frame |
Box section ladder type
|
| Electric equip. |
Battery |
12V-40AH
|
| Generator |
12V-250W
|
| Starter |
12V-1PS
|
| Engine |
Model |
GR100
|
| Total displacement (cc) |
1,251
|
| Maximum output (PS/rpm) |
55/5,000
|
| Bore X Stroke (mm) |
71 X 79
|
| Compression Ratio |
8.5
|
| Maximum torque (Kgm/rpm) |
9.7/3,200
|
| Firing order |
1-3-4-2
|
| Fuel tank capacity (L) |
37
|
| Carburetor |
Stromberg
|

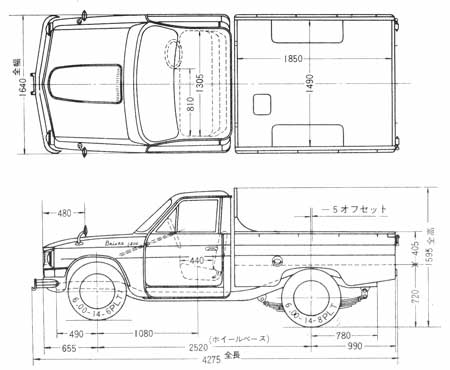

| Dimensions |
 |
|
