| Type |
GY10
|

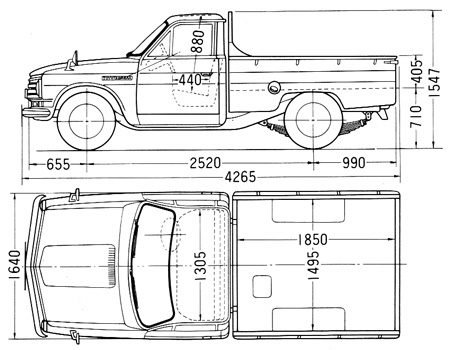

| Dimensions (mm) |
Length |
4,285
|
| Width |
1,640
|
| Height |
1,545
|
| Wheelbase |
2,520
|
| Treads (Front/Rear) |
1,325/1,300
|
| Ground clearance |
195
|
Bed (mm)
inside |
Length |
1,850
|
| Width |
1,495
|
| Height |
405
|
| Weight (kg) |
Weight, Dry |
1,035
|
| Seating capacity |
3
|
| Max. load capacity |
1,000
|
| Total weight |
2,200
|
| Performance |
Max. Speed (km/h) |
115
|
| Climbing capabity sinθ |
0.330
|
| Min. turning radius (m) |
5.1
|
| Engine |
Type |
4 cylinders and overhead valves |
| Bore X Stroke (mm) |
71 X 79 |
| Total displacement (cc) |
1,251 |
| Compression Ratio |
8.5 |
| Maximum output (PS/rpm) |
63/5,500 |
| Maximum torque (Kgm/rpm) |
9.9/3,000 |
| Fuel tank capacity (L) |
40 |
| Battery (V-A.H.) |
12-35 |
| Generator (V-W) |
(Aalternating current) 12-300 |
| Starter (V-PS) |
12-1 |
| Drive system |
Clutch |
Dry single plate, diaphragm
|
| Transmission |
Reverse, Forwrd 4-speed and Syncromesh
(excpet first gear)
|
| Gear Ratio/1st |
4.992
|
| Gear Ratio/2nd |
2.796
|
| Gear Ratio/3rd |
1.606
|
| Gear Ratio/4th |
1.000
|
| Gear Ratio/Reverse |
4.992
|
| Reduction gear |
Hypoid gear
|
| Redcution Ratio |
5.857
|
| Steering system |
Ball and nut type |
| Steering Ratio |
18.47 |
| Front axle |
Wishbone type |
| Rear axle |
Semi- floating type |
| Main breaks type |
4-wheels hydraulic and internal expanding type |
| Main breaks (Front) |
Duo serve with automatic adjustment |
| Main breaks (Rear) |
--- ditto --- |
| Parking brake tyoe |
Mechanically operated, internal expanding type on 2 rear wheels |
| Suspension |
Front |
Independent suspension spring
|
| Rear |
Semi- elliptical leaf spring
|
| Number of leaf spring (Length * Width * Thickness mm - Number) |
1247*6*6-4/7-1/12-1 |
| Sub-springs |
Rubber |
| Shock Absorbers |
Hydraulic reciprocating cartridge
(Front, Rear)
|
| Frame
|
Box section ladder type
|
| Tires (Front) |
6.00-14-6PLT |
| Tires (Rear) |
6.00-14-8PLT |
|
