| Standard Van and Mini-Bus (1961: PB10) |
| Items |
Standard Van
|
Mini-Bus
(10 Passengers)
|
| Dimensions (mm) |
Overall length |
3,940 |
| Overall width |
1,690 |
| Overall height |
1,910 |
1,900 |
| Wheelbase |
2,100 |
| Treads (Front/Rear) |
1,300/1,270 |
| Ground clearance |
180 |
185 |
| Floor height |
490 |
485 |
| Load room dimensions (mm) |
Length |
2,360 |
3,295 |
| Width |
1,465 |
| Height |
1,405 |
1,365 |
| Weight, dry (kg) |
1,035 |
1,145 |
| Weight, max. (kg) |
1,645 |
1,695 |
| Max. load capacity |
500 |
--- |
| Seating capacity |
2 |
10 |
| Max. speed km/h |
82 |
| Fuel consumption km/litter |
14 |
| Min. turning radius (m) |
4.6 |
| Climbing capabity sinθ |
0.31 |
| Fuel tank capacity (litters) |
31 |
| Tire size |
5.50-14 6PLT |
| ENGINE |
4 cylinders & OHV |
| Bore X Stroke (mm) |
60X74 |
| Piston displacement (cc) |
836 |
| Compression ratio |
7.9 |
| max. output (PS/rpm) |
28/4600 |
| Max. torque (mkg/rpm) |
5.3/2800 |
| Firing order |
1-3-4-2 |
| Generator, rated output |
12V 200W |
| Starter |
12V 0.7PS |
| Clutch type |
Dry single plate (Hydraulic control) |
| Transmission |
4-speed and Syncromesh
(excpet first gear) |
| Reduction gear |
Type |
Spiral bevel gear |
| Ratio |
5.71 |
| Steering system |
Worm pin type |
| Suspension |
4 wheels independent |
| Spring |
Front |
torsion bar spring & Half elliptic crosswise spring |
| Rear |
torsion bar spring |
| Break |
Foot |
Hydraulically operated, internal expanding type on all 4 wheels |
| Manual |
Mechanically operated, internal expanding type on 2 rear wheels |
| Shock absorber |
Hydraulic reciprocating cartridge |
| Body |
Monocoque |

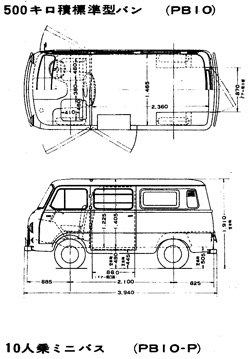

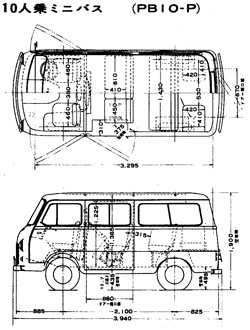

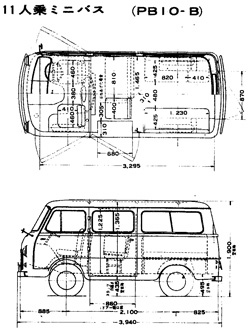

| Technical dimensions (Click each one for enlargement) |
 |
|
 |
 |
|
