| Type |
PD300 & PD400
|

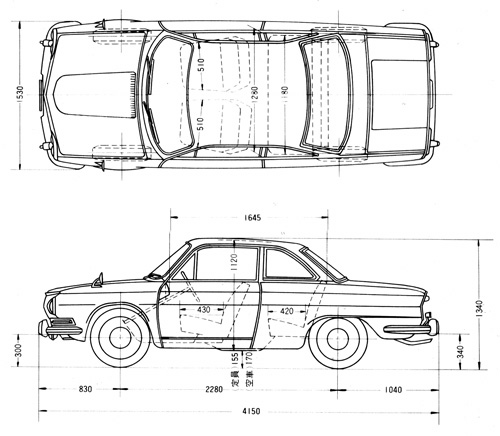

| Dimensions (mm) |
Length |
4,150
|
| Width |
1,530
|
| Hieght |
1,340
|
| Wheelbase |
2,280
|
| Treads (Front/Rear) |
1,235/1,220
|
| Ground clearance |
170
|
| Passenger compartment size (mm) |
Length |
1,645
|
| Width |
1,280
|
| Hieght |
1,130
|
| Weight (kg) |
Weight, Dry |
945
|
| Seat capacity |
4
|
| Total weight |
1,165
|
| Performance |
Max. Speed (km/h) |
145
|
| Climbing capabity sinθ |
0.43
|
| Min. turning radius (m) |
4.6
|
| Fuel consumption km/litter |
17
|
| Stopping distance (m) |
14 (@50km/h)
|
| Engine |
Model |
GR100, OHV, Water cooled, Straight 4 cylinder
|
| Bore X Stroke (mm) |
71 X 79
|
| Piston Displacement (cc) |
1,251
|
| Compression ratio |
9.0
|
| Maximum output (PS/rpm) |
65/5,500
|
| Maximum torque (Kgm/rpm) |
10.0/3,800
|
| Firing order |
1-3-4-2
|
| Fuel tank capacity (L) |
34
|
| Electric equip. |
Battery |
12V-35AH
|
| Generator |
AC generator, Self rectification, 12-300W
|
| Starter |
12V-1PS
|
| Transmission system |
Clutch |
Dry single plate
|
| Transmission |
4-speed forward and 1 reverse, Synchromesh on forward
|
| Gear Ratio/1st |
3.70
|
| Gear Ratio/2nd |
2.31
|
| Gear Ratio/3rd |
1.40
|
| Gear Ratio/4th |
0.97
|
| Gear Ratio/Reverse |
3.09
|
| Reduction gear |
Hypoid gear
|
| Redcution Ratio |
4.11
|
| Steering system |
Helical rack & pinion
|
| Breaks |
Foot |
Front disk brake, Read leading trailing
|
| Manual |
Mechanically operated, internal expanding type on 2 rear wheels
|
| Suspension |
Type |
4 wheel independent suspension
|
| Front |
Wishbone
|
| Rear |
Swing axle
|
| Shock Absorber (Front/Rear) |
Hydraulic reciprocating cartridge
|
| Stabilizer |
Swaybar
|
| Frame |
Monocoque body
|
| Tire |
Front |
5.60-13-4PR
|
| Rear |
5.60-13-4PR
|
|
